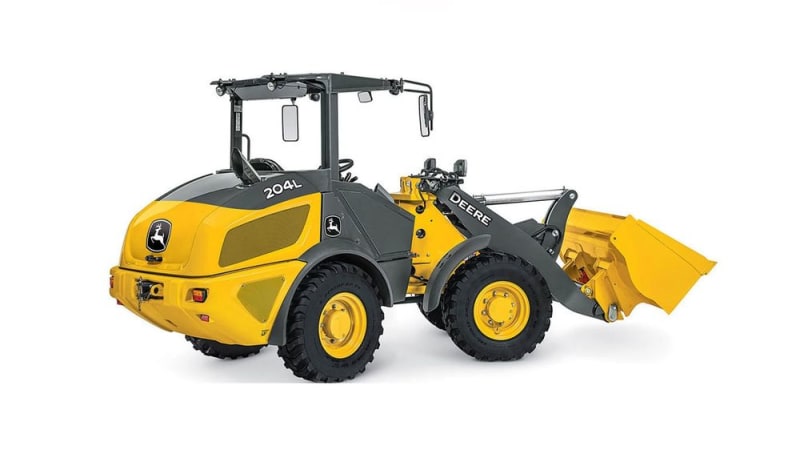

204L
John Deere Construction | Compact Wheel Loaders
Request a Quote- Net Power: 45 kW (61 hp) @ 2,200 rpm
- Operating Weight: 5,355 kg (11,806 lb.)
- Bucket Capacity: 0.8-1.1 m³ (1.0-1.4 cu. yd.)
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 204L Wheel Loader |
DRIVELINE
| Engine Manufacturer | YANMAR | |||
|---|---|---|---|---|
| Engine Model | 4TNV98 | |||
| Emission Rating | Tier 4 | |||
| Displacement, ltr (Inches³) | 3.3 (203) | |||
| Rated Speed, rpm | 2200 | |||
| Engine Output - Net, kW (hp) | 45 (61) | |||
| Torque, Nm (lbf / ft) | 239 (176) | |||
| Transmission Type | Hydrostatic | |||
| Front Differential Type | Limited Slip - 45% | |||
| Rear Differential Type | Limited Slip - 45% | |||
| Tire size - Standard | 365 / 70 R18 | |||
| Service Brake - Type | Wet Disc & Drum | |||
| Service Brake - Location | Driveline | |||
| Service Brake - Actuation | Hydraulic | |||
| Parking Brake - Type | Wet Disc |
DIMENSIONS
| Height - Over Cab, mm (ft/in) | 2450 (7 ft 11 in) | |||
|---|---|---|---|---|
| Wheelbase, mm (ft/in) | 2150 (7 ft 1 in) | |||
| Length - Including Bucket, mm (ft/in) | 5420 (17 ft 4 in) | |||
| Ground clearance, mm (inches) | 318 (12.5) | |||
| Width Over tires - Std, mm (ft/in) | 1760 (5 ft 9 in) | |||
| Height - Pivot Pin, mm (ft/in) | 3180 (10 ft 5 in) | |||
| Reach - At 2130mm 45° Dump, mm (ft/in) | 1490 (4 ft 11 in) | |||
| Turning Circle - Maximum, mm (ft/in) | 8600 (28 ft 2 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 50 (13.2) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 90 (23.8) | |||
| Axle - Front, ltr (gallons (US)) | 6 (1.6) | |||
| Axle - Rear, ltr (gallons (US)) | 6 (1.6) | |||
| Transmission, ltr (gallons (US)) | 1 (0.275) | |||
| Heaped Capacity, m³ (yd³) | 0.8 (1) | |||
| Bucket Capacity - Smallest, m³ (yd³) | 0.8 (1) | |||
| Largest bucket capacity, m³ (yd³) | 1.1 (1.4) | |||
| Breakout - Bucket , kgf (lbf) | 4170 (9190) | |||
| Ride Control System | Optional | |||
| System Voltage, V | 12 | |||
| Alternator Output, Amp | 80 | |||
| Pump Type | Gear | |||
| Pump Flow, lt/min (gallons (US) / min) | 70 (18) | |||
| System Pressure, bar (PSI) | 230 (3335) |
WEIGHTS
| Operating Weight, kg (lbs) | 5355 (11806) |
|---|
