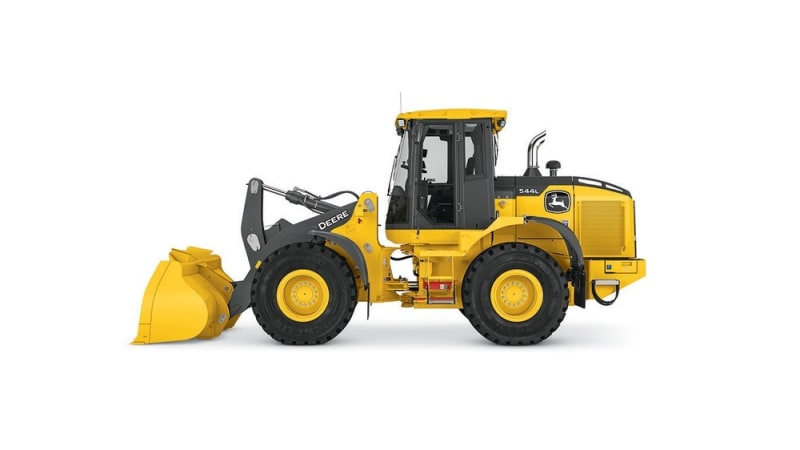

544L
John Deere Construction | Mid-Size Wheel Loaders
- Net Power: 123 kW (166 hp)
- Operating Weight: 13 844–14 827 kg (30,520–32,827 lb.)
- Bucket Capacity: 1.9–3.4 m3 (2.5–4.5 cu. yd.)
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 544L Wheel Loader |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PVS 6068 | |||
| Emission Rating | Tier 4 | |||
| Displacement, ltr (Inches³) | 6.8 (414) | |||
| Rated Speed, rpm | 1700 | |||
| Engine Output - Net, kW (hp) | 123 (166) | |||
| Torque, Nm (lbf / ft) | 770 (568) | |||
| Transmission Type | Powershift | |||
| Front Differential Type | Locking | |||
| Rear Differential Type | Open | |||
| Tire size - Standard | 20.5 R25 | |||
| Service Brake - Type | Wet Disc | |||
| Service Brake - Location | All Wheels | |||
| Service Brake - Actuation | Hydraulic | |||
| Parking Brake - Type | Wet Multi Disc - Driveline |
DIMENSIONS
| Height - Over Cab, mm (ft/in) | 3330 (10 ft 11 in) | |||
|---|---|---|---|---|
| Wheelbase, mm (ft/in) | 2930 (9 ft 7 in) | |||
| Length - Including Bucket, mm (ft/in) | 7490 (24 ft 7 in) | |||
| Ground clearance, mm (inches) | 400 (15.7) | |||
| Width Over tires - Std, mm (ft/in) | 2546 (8 ft 4 in) | |||
| Height - Pivot Pin, mm (ft/in) | 3890 (12 ft 9 in) | |||
| Reach - At 2130mm 45° Dump, mm (ft/in) | 1510 (4 ft 11 in) | |||
| Turning Circle - Maximum, mm (ft/in) | 11880 (39 ft ) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 298 (79) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 82.1 (21.7) | |||
| Axle - Front, ltr (gallons (US)) | 16.6 (4.375) | |||
| Axle - Rear, ltr (gallons (US)) | 18 (4.75) | |||
| Transmission, ltr (gallons (US)) | 21 (5.55) | |||
| Heaped Capacity, m³ (yd³) | 2.3 (3) | |||
| Bucket Capacity - Smallest, m³ (yd³) | 2.3 (3) | |||
| Largest bucket capacity, m³ (yd³) | 3.4 (4.5) | |||
| Breakout - Bucket , kgf (lbf) | 13166 (29026) | |||
| Ride Control System | Optional | |||
| System Voltage, V | 24 | |||
| Alternator Output, Amp | 100 | |||
| Pump Type | Piston | |||
| Pump Flow - 1, lt/min (gallons (US) / min) | 220 (58) | |||
| System Pressure, bar (PSI) | 251.66 (3650) |
WEIGHTS
| Operating Weight, kg (lbs) | 13844 (30520) |
|---|
