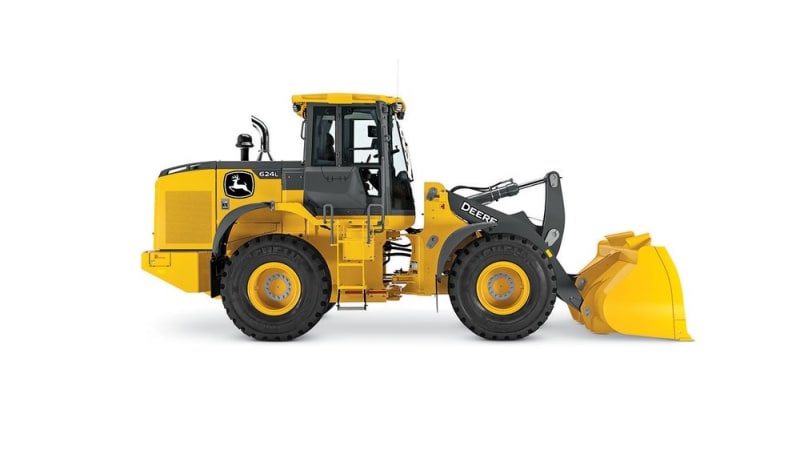

624L
John Deere Construction | Mid-Size Wheel Loaders
- Net Power: 143 kW (192 hp)
- Operating Weight: 15 747–16 799 kg (34,715–37,174 lb.)
- Bucket Capacity: 2.3–4.0 m3 (3.0–5.25 cu. yd.)
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 624L Wheel Loader |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech PVX 6068 | |||
| Emission Rating | Tier 4 | |||
| Displacement, ltr (Inches³) | 6.8 (414) | |||
| Rated Speed, rpm | 1600 | |||
| Engine Output - Net, kW (hp) | 143 (192) | |||
| Torque, Nm (lbf / ft) | 923 (681) | |||
| Transmission Type | Powershift | |||
| Front Differential Type | Locking | |||
| Rear Differential Type | Open | |||
| Tire size - Standard | 20.5 R25 | |||
| Service Brake - Type | Wet Disc | |||
| Service Brake - Location | All Wheels | |||
| Service Brake - Actuation | Hydraulic | |||
| Parking Brake - Type | Wet Multi Disc - Driveline |
DIMENSIONS
| Height - Over Cab, mm (ft/in) | 3400 (11 ft 2 in) | |||
|---|---|---|---|---|
| Wheelbase, mm (ft/in) | 3090 (10 ft 1 in) | |||
| Length - Including Bucket, mm (ft/in) | 7760 (25 ft 6 in) | |||
| Ground clearance, mm (inches) | 384 (15.1) | |||
| Width Over tires - Std, mm (ft/in) | 2657 (8 ft 8 in) | |||
| Height - Pivot Pin, mm (ft/in) | 3960 (13 ft ) | |||
| Reach - At 2130mm 45° Dump, mm (ft/in) | 1590 (5 ft 2 in) | |||
| Turning Circle - Maximum, mm (ft/in) | 12440 (40 ft 10 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 299 (79) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 102.8 (27.2) | |||
| Axle - Front, ltr (gallons (US)) | 22 (5.75) | |||
| Axle - Rear, ltr (gallons (US)) | 17 (4.5) | |||
| Transmission, ltr (gallons (US)) | 27 (7.125) | |||
| Heaped Capacity, m³ (yd³) | 2.7 (3.5) | |||
| Bucket Capacity - Smallest, m³ (yd³) | 2.7 (3.5) | |||
| Largest bucket capacity, m³ (yd³) | 4 (5.25) | |||
| Breakout - Bucket , kgf (lbf) | 13605 (29994) | |||
| Ride Control System | Optional | |||
| System Voltage, V | 24 | |||
| Alternator Output, Amp | 130 | |||
| Pump Type | Piston | |||
| Pump Flow - 1, lt/min (gallons (US) / min) | 261 (69) | |||
| System Pressure, bar (PSI) | 248.21 (3675) |
WEIGHTS
| Operating Weight, kg (lbs) | 15747 (34715) |
|---|
