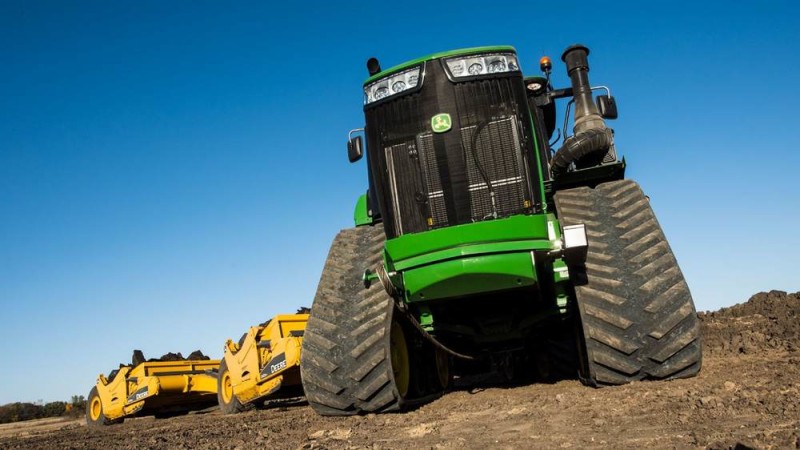

John Deere 9520RX Scraper Special Tractor

The John Deere exhaust filter is integrated into the engine design and electronics to provide a seamless operator experience. The engine control unit (ECU) and exhaust temperature management (ETM) system work together to continuously regenerate the exhaust filter using a natural cleaning process sometimes referred to as passive regeneration.



If natural filter cleaning cannot be achieved based on temperature, load, and speed, then particulate matter (PM) must be removed using an automatic cleaning process sometimes referred to as active regeneration. In most cases, filter cleaning does not impact machine operation or require operator involvement. Higher pressures created by our Final Tier 4 (FT4)/Stage IV high-pressure fuel system extend intervals between automatic cleanings.

How EGR works

EGR reduces the high temperatures where nitrogen oxide (NOx) compounds are formed in the engine cylinders by replacing excess oxygen with a prescribed amount of cooled exhaust gas.



Exhaust gases contain more carbon dioxide than oxygen. The EGR valve, in conjunction with the venturi and ECU, allows a controlled amount of exhaust gas to enter the intake manifold to mix with the incoming fresh air. Replacing excess oxygen with cooled exhaust gas leads to lower combustion temperatures, creating less NOx. In addition, EGR allows for advanced timing, leading to optimal performance of the engine, maximizing fuel economy.



Flow of exhaust during engine operation

Exhaust airflow enters into the EGR cooler from the exhaust manifold near the turbocharger.



Based on engine load, air temperatures, and rpm, the ECU opens or closes the EGR valve, allowing a measured percentage of exhaust gas to enter the intake manifold.



The gases mix with the rest of the incoming air from the turbocharger and aftercooler before entering the cylinders.



The following diagrams illustrate how air flows through the engine (PSS).



For added performance and efficiency, the engine passes the exhaust gases through an EGR cooler before it enters the engine.

PSS 9.0L and 13.5L FT4 technology

The standard CommandView III cab offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

Features:

• ComfortCommand™ seat with air suspension, lumbar support, swivel, fore-aft and lateral attenuation, backrest angle adjustment, adjustable left-hand armrest, and 40-degree right-hand seat swivel
• Operator presence system that warns if the operator is out of the seat while operating key functions
• Folding instructional seat
• CommandARM™ control center with integrated controls
• 4100 or 4600 Generation 4 CommandCenter™ processor
• Behind-the-seat storage
• Left-hand storage compartment
• Passive noise reduction system
• Service ADVISOR™ diagnostic system data port
• Tilt/telescoping steering wheel with position memory
• Swing-out rear window, opens 30 degrees
• Right- and left-outside mirrors (manually adjustable mirror head)
• Monitor mounts on right-hand front post and rear cab post
• Standard radio package, including AM/FM stereo and weatherband with remote controls, auxiliary input jack, four speakers, and an external antenna
• Laminated glass
• Air conditioner and heater with automatic temperature controls (ATC)
• Two 12-V convenience outlet (cigarette lighter style)
• One 12-V 3-pin outlet with adapter (provides switched and unswitched power)
• One International Organization for Standardization (ISO) nine-pin connector
• Power strip with convenience plug adapter
• Hitch control lever lock and selective control lever lock
• Two-speed and intermittent front and rear wiper with washer
• Front pull-down sunshade
• Digital cornerpost display with:
  • Fuel level gauge, including low fuel warning
  • Temperature gauge
  • Diesel exhaust fluid (DEF) gauge, including low DEF warning
  • Engine rpm
  • Transmission commanded gear or speed
  • Vehicle system functions, such as iTEC™ end-row guidance, that are operating
• Inside-mounted rearview mirror
• Beverage holders sized to accommodate various containers
• Interior left-hand dome light

ComfortCommand seat

ComfortCommand seat improves ride quality and helps to reduce operator fatigue

Features include:

• Armrests, lumbar support, and backrest angle are easily adjusted to match operator preference.
• Shock absorbers dampen the motion effect of the tractor for an improved ride.
• Seat height adjustments are conveniently located on the left armrest.
• Fore-aft adjustment is easy to reach located on the left front of the seat.
• Swivel adjustment, located on the front of the seat, allows the seat to be swiveled 40 degrees to the right or eight degrees to the left of the center position.
• Operator presence switch warns if the operator is out of the seat while operating key functions.
• Seat belt retractor.
• Centered cab seat, providing excellent over-shoulder visibility.
• Adjustable shock absorber permitting ride adjustment from soft to firm to match the operator's desired comfort level.
• Removable cushions for easy cleaning.

CommandARM

John Deere 9 Family Tractors feature the CommandARM with integrated Generation 4 CommandCenter display. The control layout of the CommandARM utilizes a clean and efficient design which groups controls by function and builds upon John Deere’s history of intuitive and ergonomic control placement and operation. The design of the CommandARM allows for a 40-degree right seat swivel and adjustable positioning matching the operator’s preference.

Controls located on the CommandARM include:

• Engine throttle
• Transmission control for e18™ transmission speed PowerShift™ transmission
• Eco mode (minimum engine speed) for e18 speed PowerShift transmission
• FieldCruise™ engine controls
• Selective control valve (SCV) controls
• AutoLoad™ controls (if equipped)
• Differential lock on/off and automatic
• iTEC™ sequence switches
• AutoTrac™ assisted steering system resume switch (if equipped)
• Radio
• Beacon light on/off
• Hazard lights on/off
• Field lights 1/2
• Heating, ventilation, air-conditioning (HVAC) system

Hydraulic controls

Hydraulic controls utilize fingertip paddle pots for raise/lower and extend/retract functions.

Throttle

The throttle design incorporates buttons which control FieldCruise speed, and transmission eco settings.

Tractor function controls

Located just to the right of the throttle is the Auto-Trac activation button and four sequence controls for iTEC functions. Behind the iTEC sequence controls there are buttons which control the activation and deactivation of differential lock. Differential lock can also be activated by the foot switch on the cab floor.

Controls for radio, lights, rotary beacon (if equipped), hazard flashers, and HVAC system are located to the center-right on the CommandARM, along with power take-off (PTO) for rear PTO.

Seat swivel

The design of the CommandARM allows for up to 40 degrees of right-hand seat swivel.

CommandCenter

The Generation 4 CommandCenters features fast adjustment of tractor functions and controls and are integrated into the CommandARM to create a seamless control center.



The following functions can be adjusted and accessed using the CommandCenter display:

• Hydraulic settings
• Hitch settings
• Transmission settings
• FieldCruise
• iTEC programming functions
• Radio
• Lights
• Add all functionality – diagnostics, display settings, etc.

The Generation 4 CommandCenter systems have the capability of Remote Display Access (RDA). RDA allows improved communication between an offsite farm manager or dealer and the equipment operator. The user can view exactly what the operator sees on the GreenStar™ 3 2630 Display and Generation 4 CommandCenter from almost any internet-connected device. RDA is available on the 4600 and 4100 CommandCenter and allows for an increase in productivity with quicker problem resolution. By using RDA, the cost of operation will decrease due to reduced labor and travel costs, and maximum efficiency will increase profit.

The e18 transmission delivers smooth shifting and intuitive controls in a reliable 18-speed PowerShift transmission. The e18 transmission with enhanced Efficiency Manager is standard equipment on all 9 Family Tractors.

The e18 has evolved from more than 50 years of John Deere PowerShift technology. With more automatic features, the e18 is easy to operate for all levels of operators and operations. It features three modes of operation, full AUTO, custom, and manual modes. Full AUTO and custom modes manage the engine and transmission to match the desired ground speed to the field conditions. These two modes are ideal for most conditions and take the guess work out of operation. Manual mode is perfect for operators looking to operate the e18 like a traditional PowerShift by bump shifting and managing the engine throttle to their liking.

As the next generation of PowerShift technology, the e18 delivers the strength to handle sudden, high-torque power loads while maintaining responsive, quick, and smooth shifts.

e18 controls

CommandCenter™ controls

The CommandCenter is the central information system for tractors and allows the operator to program various settings tailored to a specific operation.

To access the tractor’s transmission settings, press the transmission shortcut button on the CommandCenter shortcut bar.

Operating modes

The e18 application settings employ three modes to take full advantage of the engine-transmission communication: Full AUTO mode, custom mode, and manual mode.

Full AUTO mode

Full AUTO mode manages the tractor’s engine and transmission inputs to reach and maintain the desired ground speed set by the operator. This means the tractor will manage shifts and engine rpm to operate at the most efficient level possible. Operators have the ability to set the maximum forward and reverse speeds for their particular applications. In full AUTO mode the operator can adjust the desired ground speed in two ways, by conducting a traditional bump shift or by rotating the dial on the thumb wheel.

When shifting in full AUTO mode, the transmission shifts set speeds and does not always shift gears, meaning the transmission may not necessarily shift gears if it can reach the desired ground speed with a slightly higher or lower engine rpm. Efficiency Manager is automatically engaged while operating in full AUTO mode. As a result, shifting will not take the tractor out of Efficiency Manager in full AUTO mode.

Custom mode

Custom mode operates similar to full AUTO mode but allows operators to adjust operating parameters to meet a specific operation. It also has the ability to activate eco mode for a higher level of operation.

Eco allows two minimum engine speeds to be set. Operators can turn eco on and off by either pushing the eco button on the side of the throttle or by selecting eco in the transmission settings page of the CommandCenter controls. For example, operators may choose to turn eco on during transport to utilize a lower minimum engine speed and then turn eco off while operating in the field where a higher minimum engine speed is desired.

In the advanced settings page, operators can customize the auto shift engine speed droop as a percentage of the full engine speed. In addition, the load anticipation feature can be enabled for the hitch engagement, hydraulic engagement, or both.

Manual mode
Manual mode operates very similarly to a traditional PowerShift transmission with Efficiency Manager.
In manual mode the operator manages the engine and transmission inputs by controlling the shift lever and hand throttle.

Efficiency Manager

Efficiency Manager is automatically enabled in auto and custom modes. Efficiency Manager can be turned on in manual mode by selecting the set speed one or set speed two button on the CommandARM™ console. The set speed adjuster on the top of the single-lever gear selector allows the operator to dial in the desired ground speed to establish set speed one or two. Once engaged, Efficiency Manager will manage the engine rpm and gear selection to maintain the desired working speed. To reach the desired set speed, the throttle must be set to full engine rpm.

e18 operation

Setting start-up gears

The 9 Family Tractors default to 7F and 2R at start up. However, these default start-up gears can be adjusted from 1-13F and 1-3R through the CommandCenter. Refer to the operator’s manual for additional information.

9R Series Tractor - e18-speed chart for PowerShift transmission with Efficiency Manager



9R table

	Group 47 tires		Group 48 tires
Tire size	(480R46, 20.8R42, 520R42, 620R42, 710R38)		(480R50, 520R46, 620R46, 710R42, 800R38)
Engine (rpm)	2100		2100
18-speed gear	km/h	mph	km/h	mph
Forward gears
F1	4.0	2.5	4.2	2.6
F2	4.8	3.0	5.0	3.1
F3	5.3	3.3	5.6	3.5
F4	5.9	3.7	6.2	3.9
F5	6.5	4.0	6.8	4.3
F6	7.3	4.5	7.6	4.8
F7	8.0	5.0	8.5	5.3
F8	9.0	5.6	9.5	5.9
F9	9.9	6.1	10.4	6.5
F10	11.0	6.9	11.6	7.2
F11	12.2	7.6	12.9	8.0
F12	13.5	8.4	14.2	8.8
F13	15.0	9.3	15.8	9.8
F14	16.6	10.3	17.5	10.9
F15	20.5	12.8	21.6	13.4
F16	25.3	15.7	26.6	16.5
F17	31.2	19.4	32.9	20.4
F18	38.5	23.9	40.5	25.2
Reverse gears
R1	3.9	2.4	4.1	2.5
R2	5.3	3.3	5.6	3.5
R3	5.9	3.7	6.2	3.9
R4	8.0	5.0	8.5	5.3
R5	9.0	5.6	9.5	5.9
R6	12.2	7.6	12.9	8.0



Group 47 tire based on 710/70R38

Group 48 tire based on 800/80R38

9RT and 9RX Series Tractor - e18-speed chart for PowerShift transmission with Efficiency Manager



9RT and 9RX table

	9RT		9RX
Engine (rpm)	2100		2100
18-speed gear	km/h	mph	km/h	mph
Forward gears
F1	4.0	2.5	4.0	2.5
F2	5.0	3.1	4.9	3.0
F3	5.5	3.4	5.5	3.4
F4	6.1	3.8	6.1	3.8
F5	6.8	4.2	6.7	4.2
F6	7.6	4.7	7.5	4.7
F7	8.4	5.2	8.3	5.2
F8	9.3	5.8	9.2	5.7
F9	10.3	6.4	10.2	6.3
F10	11.4	7.1	11.4	7.1
F11	12.6	7.8	12.6	7.8
F12	14.1	8.7	14.0	8.7
F13	15.6	9.7	15.5	9.6
F14	17.3	10.7	17.2	10.3
F15	21.4	13.3	21.3	13.2
F16	26.3	16.3	26.2	16.3
F17	32.3	20.1	32.2	20.0
F18	39.8	24.7	39.6	24.6
Reverse gears
R1	4.0	2.5	4.0	2.5
R2	5.5	3.4	5.5	3.4
R3	6.1	3.3	6.1	3.8
R4	7.3	3.8	8.3	5.2
R5	9.3	5.8	9.2	5.7
R6	12.6	7.8	12.6	10.3

JDLink

JDLink is the John Deere telematics system designed for operators and managers who desire to take their operations to the next level of productivity and efficiency without leaving the office. Whether it is receiving an e-mail or text message, users can manage the operation in real-time without being in the cab. Using the power of JDLink can optimize productivity, increase uptime, and boost profits with JDLink information all accessible from a laptop, desktop, or mobile device.

JDLink Ultimate provides enhanced machine performance and utilization information that can only be achieved through direct communication with on-board machine controllers. Utilizing John Deere-exclusive telematics technology, users can remotely link to Ultimate-compatible machines to achieve a new level of optimization.

NOTE: Mobile device compatibility and functionality varies.

Monitor assets, performance, and more with JDLink:

• Increase uptime and reduce time spent managing equipment with JDLink Ultimate
• Coordinate machine and labor logistics
• Unleash new possibilities with wireless machine connectivity
• Locate machines on-the-go with the JDLink app for iPhone®, iPad® or Android™ devices
• Leverage common components from the JDLink system to enable remote support and machine monitoring
• Industry-exclusive Service ADVISOR Remote with JDLink (Canada link)

For more information on JDLink activations and subscriptions, visit www.StellarSupport.com.

NOTE: JDLink is not available in all geographic regions.

Service ADVISOR

Service ADVISOR diagnostics greatly assist in reducing service costs and downtime. It allows the John Deere service technician to readily extract vital information about tractor malfunctions through the Service ADVISOR data port. Diagnostic codes and controller area network (CAN) bus statistics stored by the tractor and visible in the CommandCenter™ display are used by service technicians to isolate, identify, and resolve problems.

Diagnostics and CAN bus statistics are not normally used by the operator. Access and use of trouble codes should only be done by a qualified, factory-trained John Deere service technician.

Service ADVISOR Remote

Service ADVISOR Remote takes the machine connectivity of JDLink and takes it one step further. With Service ADVISOR Remote, machines can be diagnosed remotely, saving the cost of a field service call. For example, diagnostic trouble codes can be reset and software updates can be uploaded remotely.



Apple, iPhone, and iPad are trademarks of Apple Inc. Android is a trademark of Google LLC.



The 115-gpm (435 L/min) hydraulic system (order code 2813) is designed to reduce scraper hydraulic cycle times, thus increasing the efficiency of the tractor/scraper combination.

Two hydraulic pumps are combined for a total of 115-gpm (435 L/min).  Flow through one 19.1-mm (3/4-in.) SCV is 45 gpm (140 L/min). The selective control valves (SCVs) are designed for commercial applications. This system is not recommended for agricultural implements with continuous flow requirements. When maximum hydraulic pump capacity is reached, multiple functions will continue to operate at the same proportional flow rate. This will prevent the rear scraper from slowing down, in relation to the front scraper, when operating the front and rear scrapers at the same time.

When ordering this scraper high-flow option, the tractor will come standard with four SCVs. The two system pumps provide their combined oil flow of 115 gpm (435 L/min) to all four SCVs through a common valve manifold. All of the SCV oil returns to one common reservoir.

19.1-mm (3/4-in.) couplers reduce restriction for increased flow to the scraper. A secondary lowering function accumulator is included with the hydraulic valves so the scraper can be lowered if hydraulic power is lost.

NOTE: This system is not recommended with agricultural implements with continuous flow demand (scraper applications only).


IMPORTANT: Do not use this system with scrapers/implements with 12.7-mm (1/2-in.) couplers/hoses/hydraulic systems. Damage could occur to implement hoses/couplers/components due to high-flow capability of the tractor system.



NOTE: Power Beyond connections are not recommended for use with scraper systems or high hydraulic oil take out demand (example: large or multiple single acting cylinders, raising multiple scraper pans). Power Beyond connections are recommended for agricultural equipment with continuous flow demands (example: variable rate drives, CCS fans).

Regular service and maintenance are essential to the performance, productivity, and longevity of all farm machinery.

Maximum uptime is an important element of productivity.

• 9 Series service points are quick and simple to check.
• Greater accessibility improves serviceability.

All items in the daily service schedule can be performed without the use of tools:

• Engine oil, hydraulic oil, coolant level, and water separator can be conveniently accessed from ground level without having to open the hood. Engine oil can be checked by simply removing one small engine side panel.

• Engine can be easily accessed by simply raising the one-piece hood and removing two engine side panels for more periodic maintenance checks.
• Single-point latch mechanism ensures easy hood opening and closure.



NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

Refueling

The 9R Tractors fuel tank is located over the rear axle. The fuel tank features a dual fill design. This design allows the machine to be filled from either side of the fuel tank. A fuel nozzle holder is located when the operator positions themselves on the gudgeon platform to fill the fuel tank.



The diesel exhaust fluid (DEF) tank is located on the left-hand side of the tractor indicated by a blue cap. It is fillable from ground level and has a protective shield to keep debris out of the fill neck.



Model	Diesel	DEF
9420R	1514 L (400 gal.)*	120 L (31.7 gal.)
9470R	1514 L (400 gal.)*	120 L (31.7 gal.)
9520R	1514 L (400 gal.)	120 L (31.7 gal.)
9570R	1514 L (400 gal.)	120 L (31.7 gal.)
9620R	1514 L (400 gal.)	120 L (31.7 gal.)

*When equipped with double-reduction axle. 1211-L (320-gal.) when equipped with single-reduction axle.

The 9RT fuel tank is located behind the cab; the fuel fill is located conveniently on the left-hand main platform.



The 9RT Tractors all feature a DEF tank capacity of 93.9 L (24.8 gal.). The fill location is near the diesel fill location.



Model	Diesel	DEF
9470RT	1325 L (350 gal.)	93.9 L (24.8 gal.)
9520RT	1325 L (350 gal.)	93.9 L (24.8 gal.)
9570RT	1325 L (350 gal.)	93.9 L (24.8 gal.)

Model	Diesel	DEF
9470RX	1514 L (400 gal.)	120 L (31.7 gal.)
9520RX	1514 L (400 gal.)	120 L (31.7 gal.)
9570RX	1514 L (400 gal.)	120 L (31.7 gal.)
9620RX	1514 L (400 gal.)	120 L (31.7 gal.)

NOTE:

• John Deere supports the usage of bio diesel. Bio diesel should meet ASTM D6751 (US) or EN 14214 (European) fuel quality standards.
• Tractors receive fuel containing a 2 percent bio-diesel blend at the factory.
• Acceptable blend levels may vary by geographic region.
• Diesel exhaust fluid will freeze when exposed for longer than three hours to conditions below -11°C (12.2° F).

For more information about the use of bio-diesel in John Deere engines, refer to www.JohnDeere.com/biodiesel.



DEF fill

9R, 9RT, and 9RX Tractors feature an easy-to-use DEF fill system. The 9R and 9RX feature a ground-level fill location, and DEF fill on 9RT is conveniently located on the step platform.



Machine	DEF tank capacity
9R	120 L (31.7 gal.)
9RT	93.9 L (24.8 gal.)
9RX	120 L (31.7 gal.)

Engine access

The tilt hood and side panel design provides additional engine compartment protection. The 9R, 9RT, and 9RX hoods feature the same design for access to engine components.

Pull out the hood release (located on the front, left side) and tilt hood back to open. Engine side panels are quickly and easily removed for access to periodic maintenance items.

In-line DEF filter

9R, 9RT, and 9RX Tractors feature an in-line DEF filter to help protect the DEF pump from any contamination in the DEF tank. This in-line DEF filter is easily serviced with a drain plug to drain any remaining DEF from the filter housing and a replaceable cartridge-style filter.

Severe-duty water separator, if equipped

The severe-duty water separator can extend service intervals and helps to protect the tractor’s fuel system from damage associated with lower-quality fuel.

Simply open the drain valve on the bottom of the separator and drain accumulated water.

NOTE: Cummins® QSX 15 L (915.4-cu in.) engines cannot be equipped with a severe-duty water separator; however, the fuel filter has separating capabilities like the primary filter on John Deere Power System engines.

Transmission, hydraulic, and axle oil level

A sight glass for the transmission, hydraulic, and axle oil level is located at the back right side of the gudgeon, indicating proper oil levels, and an oil fill neck is located on the back right side of the gudgeon for the 9R and 9RX Tractors. The oil fill is located on the top of the common reservoir on the left side of the 9RT Tractor and a fill tube is located between the steps and engine of the tractor.

• Provides increased filter capacity compared to previous 9R and 9RT Tractors
• Transmission, hydraulic, and axle oil should be changed every 1500 hours
• Filter should be changed every 1500 hours unless filter restriction code occurs
• Daily and 10-hour inspections of the transmission hydraulic oil level are recommended

NOTE: The tractor should be off and parked on level ground with the hitch in the lowered position when checking the oil level.

• Sight glass observations will be significantly higher with hot oil temperatures and lower with cold oil or if engine has not run long enough.


NOTE: Oil level above the top mark on the sight glass can result in power loss and heat generation during transport applications.

Battery boost terminal

On the 9R and 9RX, a battery boost terminal is located on the left-hand side of the engine for convenient and proper boost assisted starting.

Primary air filter access

On the 9R and 9RX, the primary engine air filter is accessible from the left-hand platform for replacement annually or as operating conditions require. The filter is aspirated and extends filter life in dusty conditions by aspirating more than 95 percent of incoming dust. Aspirator suction is created by utilizing the air flow from the cooling fan.



On the 9RT, the primary engine air filter is located at ground level on right side of tractor.

Oil change intervals

Tractors with the 9.0L (549.2-cu in.) and 13.5L (823.2-cu in.) John Deere Power Systems engines feature a 500-hour change interval when using approved John Deere Plus-50™ II oil and a John Deere oil filter.

Tractors equipped with the Cummins QSX 15-L (915.4-cu in.) engine have a 400-hour engine oil and oil filter change interval.

• Previous initial oil and filter change at 100 hours is no longer required due to the factory fill of Break-In™ Plus oil.
• If using anything other than John Deere Plus-50 II oil, a 250-hour change interval is required.  CJ-4 must still be used.
• Only use ultra-low sulfur diesel fuel and CJ-4, ACEA E9, or ACEA E6 oil.
• An oil change of 500 hours is possible when using fuel with less than 15 parts per million (ppm) of sulfur, along with John Deere Plus-50 II oil.

See the tractor's operator's manual for oil change intervals and further details.

Battery access

The 9R and 9RX battery location is behind the left-hand step assembly. There are three bolts that secure the swinging step assembly that need to be removed to completely access the batteries. The 9RT top step of the platform conceals the tractor’s three 12-V batteries with 2775 CCA (925-CCA each). Tractors with the Cummins X15 engine will have four 12-V batteries in the same location as tractors equipped with John Deere Power System engines.

Although the batteries are maintenance free, conditions such as long periods of operation at high ambient temperatures and excessive engine cranking may require adding water.

Windshield washer

The windshield washer bottle is optional on 9R and 9RX Tractors and is located on the left side of the tractor near the DEF fill point. On 9RT Tractors, it is located on the right-side frame.

Maintenance-free U-joint

Maintenance-free U-joint bearings require no servicing to reduce maintenance time.

Fuse and relay panel

The electrical fuse and relay panel is located behind the operator’s seat and just below the cab's rear window. Simply lift up on the operator manual cover for access.

• Contains easy-to-replace automotive blade-type fuses and relays for quick servicing.
• Spare fuses are provided for each amperage size used.

The diode module contains many of the diodes contained in the system:

• If a diode problem occurs, simply replace the diode module for easy service and increased uptime.
• Relays are also fully interchangeable for quick service.



Electrical system (smart load center)

The electrical system provides a full controller area network (CAN) bus based system on the tractor for improved tractor implement integration and flexibility. Incorporated with the system is a smart load center, which provides fewer fuses, fewer connectors, and simplified wiring for increased reliability.

The solid-state load center’s primary function is to control the majority of high-current loads, such as fender floodlights and the horn. This electronic circuitry will monitor loads and voltages to provide fast reaction time and the ability to alert the operator if a circuit overloads or if voltage is out of specification – for example, open circuit (undercurrent) or short circuit (overcurrent).

Cab air filters

The cab fresh air filter is conveniently located beneath the left side of the cab for all 9 Series products:

• External service means no mess in the cab from dusty filters
• Filter housing acts as a dust accumulator compartment
• Hand screw eliminates need for tools
• Replace cab fresh air filter every 1000 hours or sooner if plugged or damaged

Cab air recirculation filter



Cab air recirculation filter is located in the roof liner above the operator. 70 percent of the total air volume is recirculated with a blanket effect for enhanced operator comfort.

• Replace cab air recirculation filter every 1000 hours or sooner if plugged or damaged.

Cab air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator’s manual and those given by the chemical manufacturer when using agricultural chemicals.

Toolbox

A convenient toolbox is located on the left-hand side of the front frame for tool storage and comes standard on all 9R, 9RT, and 9RX Tractors.

9R and 9RX Tractors have an additional storage box conveniently located on top the left-hand platform.

The 9RT has an additional toolbox conveniently located next to the left side of the batteries for additional storage.

Cummins is a trademark of Cummins, Inc.

The front tow cable is recommended for pulling all 9 Family Tractors in time of needed assistance. Tow cables are available as a factory-installed option on all ag tractors and are base equipment on all Scraper Special Tractors. The tow cable attaches to the area in front of the drawbar and is also available as a field-installed option.

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

• Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
• Saves time by remotely viewing in-cab displays, reducing trips to the machine
• Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
• Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.
