John Deere Construction | Variable Rate Application
- Reduces tank mixing and cleaning
- Compatible with GreenStar™ Rate Controller
- Options to meet customer needs
Features
Reduces tank mixing and cleaning
Chemicals are kept separate in the tank

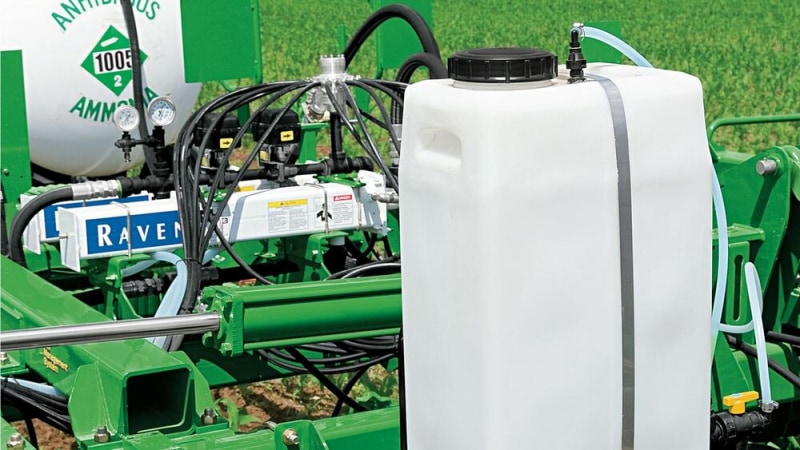

The Sidekick Pro™ ISO by Raven is a direct-injection system that eliminates the need to mix chemicals with the carrier in the solution tank of the sprayer. The chemical is injected directly into the plumbing of the sprayer boom. This reduces the need to clean the solution tank since the chemical is never present in the solution tank.
The solution tank can then be dedicated to water only while chemicals reside in the tank of the Sidekick Pro ISO system. Check valves installed on the plumbing of the sprayer and the Sidekick Pro ISO system prevent contamination of the chemical and solution tank.
Chemicals are mixed with the carrier in an in-line mixer that is installed onto the sprayer. A major benefit of the Sidekick Pro ISO system is that it is only mixing (utilizing) the amount of the chemical needed to complete the field. If there is excess chemical at the end of the field, raw chemical can be drained from the Sidekick Pro ISO tank and returned to the original container.
Without a Sidekick Pro ISO direct-injection system, chemicals and water are mixed in the carrying tank. The entire tank must be cleaned and flushed before changing chemical.
Sidekick Pro ISO is a U.S.-registered trademark of Raven Industries Incorporated.
Compatible with GreenStar™ Rate Controller
GreenStar 3 2630 with Sidekick Pro ISO
Three Sidekick Pro ISO systems with one rate controller
The Sidekick Pro™ ISO by Raven is a direct-injection system that works directly with the GreenStar Rate Controller. This requires the sprayer, anhydrous ammonia (NH3) toolbar, or fertilizer applicator to be equipped with a GreenStar Rate Controller.
The rate controller communicates directly via controller area network (CAN) bus with the Sidekick Pro ISO system so the proper amount of chemical is being injected for the current speed, current boom/implement width, and application rate. The rate controller homepages and setup menus have been updated to support some of the basic functionality for the Sidekick Pro ISO system.
All functions of the Sidekick Pro ISO system can be accessed directly from the GreenStar 2630 Display. A machine or implement equipped with a single GreenStar Rate Controller is capable of working directly with up to three Sidekick Pro ISO systems.
Sidekick Pro ISO is a U.S.-registered trademark of Raven Industries Incorporated.
Supports GreenStar™ 3 2630 Display features
Sidekick Pro™ ISO on GreenStar 3 2630 Display
Documentation and prescriptions with Sidekick Pro ISO
The Sidekick Pro ISO by Raven direct-injection system is an ISOBUS-compatible controller that communicates directly with the GreenStar 3 2630 Display. Each Sidekick Pro ISO pump populates within the menu key on the GreenStar 3 2630, allowing the operator to access the settings for each pump.
The ISOBUS compatibility of the Sidekick Pro ISO system also enables the use of features on the GreenStar 3 2630 Display. John Deere Section Control can be used to control the sections on the GreenStar Rate Controller, thus controlling the product application of the Sidekick Pro ISO.
Each Sidekick Pro ISO pump will populate a product application operation within the documentation softkey on the GreenStar 3 2630. This allows the operator to document the chemical that is being injected into the carrier solution. Also, since each pump populates a separate operation, prescriptions (Rxs) can be utilized for each pump. This provides the operator the flexibility to apply the product application in the most effective and efficient manner; saving time, inputs, and money.
Sidekick Pro ISO is a U.S.-registered trademark of Raven Industries Incorporated.
Options to meet customer needs
The Sidekick Pro™ ISO by Raven direct-injection system has several options to meet the needs of users. The Sidekick Pro ISO system is available with either a low-volume or a high-volume pump. The low-volume pump has a capacity of 1 to 40 oz/min; the high-volume pump has a capacity of 5 to 200 oz/min. This helps the user to size the pump correctly for the type of implement or application the Sidekick Pro ISO direct-injection system is controlling.
Each Sidekick Pro ISO system can be configured with an optional tank and skid assembly. This option provides 24 gal. of chemical storage and a convenient mounting location for the pump on the skid assembly. Users can utilize an existing chemical-storage tank on the implement by ordering the Sidekick Pro ISO system without the tank and skid assembly.
Sidekick Pro ISO systems can be equipped with agitation on the optional 24-gal. tank. The agitation kit mounts on the 24-gal. tank (order the corresponding tank in attachments designed for agitation) and will keep chemicals properly mixed that are susceptible to settling out. The agitation system is controlled directly from the Sidekick Pro ISO settings on the GreenStar™ 3 2630 Display.
An in-line mixer and check valves are required to complete a Sidekick Pro ISO direct-injection system. There are several different mixers and check valves available to meet the flow requirements of the solution system and the type of product that is being applied.
Sidekick Pro ISO is a U.S.-registered trademark of Raven Industries Incorporated.
Generation 4 Display compatibility
This document lists all the compatible equipment approved with the software update 19-2 release, and is subject to change with newer software updates. To ensure complete and proper compatibility, the most current version of implement control unit software, Generation 4 Display software, or compatible farm management information software (FMIS) should be used. Non-current software versions will require an update before support can be provided. Unapproved software version configurations will not be supported.
The software update 19-2 release is only compatible with 4600 CommandCenter™ v2 processors. Software update 17-2 is the last release that was compatible with 4600 v1 processors.
Server serial numbers are as follows:
- v1 = RWG prefix
- v2 = PCG prefix
Machine compatibility
John Deere Large Ag Tractors
| John Deere Large Ag Tractors (list of all automatically detected machines) |
Model year | CommandCenter display | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | ||
| 9R/9RT/9RX Series | 2018 and newer | X | --- | X | X |
| 9R/9RT/9RX Series | 2015-2017 | * | --- | X | X |
| 9R/9RT Series | 2012-2014 | --- | --- | X | X |
| 9030/9030T Series | 2008 and newer | --- | --- | X | X |
| 9020/9020T Series | 2002-2007 | --- | --- | X | --- |
| 9000 Series | 1997-2001 | --- | --- | X | --- |
| 9000T Series | 2000-2001 | --- | --- | X | --- |
| 8R/8RT Series | 2018 and newer | X | --- | X | X |
| 8R/8RT Series | Mid-2014 - 2017 | * | --- | X | X |
| 8R/8RT Series | 2010-2013 | --- | --- | X | X |
| 8030/8030T Series | 2006 and newer | --- | --- | X | X |
| 8020/8020T Series | 2002-2005 | --- | --- | X | --- |
| 8010/8010T Series | 2000-2002 | --- | --- | X | --- |
| 8000 Series | 1994 | --- | --- | X | --- |
| 8000T Series | 1997-1999 | --- | --- | X | --- |
| 7R Series | 2018 and newer | X | X | X | X |
| 7R Series | 2014-2017 | * | --- | X | X |
| 7R Series | 2011-2013 | --- | --- | X | X |
| 7J Series | 2018 and newer | --- | --- | X | X |
| 7030 Series | 2007 and newer | --- | --- | X | X |
| 7030 Series (Large Frame) | 2007 and newer | --- | --- | X | X |
| 7030 Series (Small Frame) | 2006 and newer | --- | --- | X | X |
| 7010 Series | 1997-2003 | --- | --- | X | --- |
| 7000 Series | 1992-1996 | --- | --- | X | --- |
| 6030 Series (Small Frame) | 2006 and newer | --- | --- | X | X |
| 6000 Series | 1992-1998 | --- | --- | X | --- |
| 6010 Series | 1999-2002 | --- | --- | X | --- |
| 6R Series | 2018 and newer | X | X | X | X |
| 6R Series (Final Tier 4) | 2015-2017 | * | --- | X | X |
| 6R Series (Interim Tier 4) | 2013-2015 | --- | --- | X | X |
| 6M Series | 2013 and newer | --- | --- | X | X |
| 6J Series | 2018 and newer | --- | --- | X | X |
| 5R Series | 2019 and newer | --- | --- | X | X |
*NOTE: For latest Precision Ag functionality, update machines equipped from the factory with v1 processor to v2. The 4640 Universal Display is not compatible with SeedStar™ 4HP Planters when installed on 00, 10, and 20 Series Tractors.
John Deere Nutrient Applicators
John Deere Nutrient Applicators |
Model year | CommandCenter | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | ||
| F4365 High-Capacity Nutrient Applicator | 2017 and newer | X | --- | --- | --- |
John Deere Self-Propelled Sprayers
| John Deere self- propelled sprayers |
Model year | CommandCenter | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | ||
| 4 Series Sprayers | 2018 and newer | X | --- | --- | --- |
| 4 Series Sprayers | 2013 - 2017 | --- | --- | X | --- |
| 4940 | 2012 - 2014 | --- | --- | X | --- |
| 4630 | 2008 and newer | --- | --- | X | --- |
| 4730 | 2008 and newer | --- | --- | X | --- |
| 4830 | 2008 - 2014 | --- | --- | X | --- |
| 4930 | 2008 - 2013 (SN 4000+) | --- | --- | X | --- |
| R4040i | 2014 and newer | --- | --- | X | --- |
| R4050i | 2017 and newer | --- | --- | X | --- |
| 5430i | 2008 - 2014 | --- | --- | X | --- |
| Hagie™ sprayers | 2014 and newer | Compatible with GreenStar™ 3 2630 Displays and 4640 Universal Displays* | |||
*NOTE: When using the 4640 Universal Display on a Hagie Sprayer, additional mounting and harnessing may be required.
- 4640 Ram™ Mount - SJ34503
- 4640 power/video harness - BPF11527 (1-3 video plus machine power), PF90687 (machine power only)
NOTE: Current John Deere/Hagie field kits only offer GreenStar 3 2630 Display parts.
NOTE: AutoTrac™ Vision/AutoTrac RowSense and multi-rank section control are not supported on Hagie at this time.
NOTE: VIN detection is not supported on Hagie Sprayers at this time.
John Deere Self-Propelled Forage Harvesters (SPFH)
John Deere Self-Propelled |
Model year | CommandCenter | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | ||
| 9000 Series SPFH | 2019 and newer | --- | --- | X | --- |
| 8000 Series SPFH | 2015 and newer | --- | --- | X | --- |
John Deere combines
| John Deere combines | Model year | CommandCenter | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | ||
| S700 Series | 2018 and newer | X | --- | --- | --- |
| S430 and S440 | 2017 and newer | X | --- | --- | --- |
| S600 Series | 2012 - 2017 | --- | --- | X | X |
| S540 and S550 Series | 2012 and newer | --- | --- | X | X |
| T-Series | 2012 and current | --- | --- | X | X |
| W-Series | 2012 and current | --- | --- | X | X |
| 70 Series | 2008 - 2013 | --- | --- | X | X |
NOTE: Competitive equipment may be compatible with 4640 Universal Display and 4240 Universal Display. For additional compatibility information, contact a John Deere dealer.
Equipment compatibility
John Deere planters
SeedStar™ 4HP planters are only compatible with 4600 CommandCenter displays with a version 2 (v2) processor and 4640 Universal Displays. Displays should be running Generation 4 OS software version 10.10.404-390 or newer and the most current version of tractor applications to be compatible with SeedStar 4HP planter applications. Additionally, dual-display mode is available for use with SeedStar 4HP planter applications, along with Generation 4 Extended Monitor. SeedStar 4HP planters are compatible with no more than two GreenStar Rate Controllers.
The SeedStar 2 configuration below is available only on factory-installed model year 2011 and newer planters and may be field-installed on model year 2009 and 2010 planters. Green PM/PA controllers (factory-installed on model year 2009 and 2010 planters) are not supported with a Generation 4 display.
A Service ADVISOR™ tool (available at a John Deere dealer) is needed to update SeedStar 2, SeedStar XP, and SeedStar 3 HP software. Documentation is not supported when using a rate controller to control row clutches on a John Deere planter.
| John Deere planters | Control unit name | Software version (or newer) | CommandCenter display | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240* | |||
| SeedStar 2 |
Black PM1 | 22.0 | X | X | X | X |
| Black PA1, (if available PA 2) | 22.0 | X | X | X | X | |
| Green PM1 | 10.11 | --- | --- | --- | --- | |
| Green PA1 (if available PA 2) | 10.11 | --- | --- | --- | --- | |
| SeedStar XP |
Black PM1 | 22.0 | X | X | X | X |
| Black PA1, (if available PA 2) | 22.0 | X | X | X | X | |
| PM2 | 7.0 | X | X | X | X | |
| SeedStar 3 HP |
Planter Main A (PCMA) | 5.0 | X | X | X | X |
| Planter Main B (PCMB or MMC) | 8.0 | X | X | X | X | |
| Row-unit Controller (RUC) | 2.0 | X | X | X | X | |
| EPG | 3.0 | X | X | X | X | |
| SeedStar 4HP |
Planter Apps | 10.4.2-29 | X | --- | X | --- |
| Planter Main A (PMCA) | 5.0 | X | --- | X | --- | |
| Planter Main B (PMCB or MMC) | 6.0 | X | --- | X | --- | |
| Row-unit Controller (RUC) | 3.0 | X | --- | X | --- | |
| Electrical Power Generation (EPG) | 5.0 | X | --- | X | --- | |
| Electrical Power Module, 2 (PC2) | 3.0 | X | --- | X | --- | |
*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.
John Deere Air Seeders
The C850 Air Cart requires a 4600/4200 CommandCenter Display or a 4640/4240 Universal Display. GreenStar 3 2630 monitors are not supported. Additionally, C850 Air Carts and AutoTrac Implement Guidance (passive) are compatible with software update 18-2 and newer.
| John Deere Air Seeder | Model year/control unit name | Software version (or newer) | CommandCenter | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240* | |||
| C850 Air Cart |
Cart Master Controller (CMC) | 12 | X | X | X | X |
| Mini Tank Controller (TXC) | 6 | X | X | X | X | |
| Front, Middle, Rear Tank Controller (TCU) | 6 | X | X | X | X | |
| 1870 Seeding Tool - TruSet™ system | 2017 and newer (IDC) | 5.0 | X | X | X | X |
| 1870 Seeding Tool - RelativeFlow™ blockage sensors | 2017 and newer (BMU) | 4.0 | X | X | X | X |
| 1910 Air Cart - ground drive | 2009 and newer | 3.0 | X | X | X | X |
| 1910 Air Cart - hydraulic drive |
2013 and newer | 8.00 | X | X | X | X |
| Seeding tools with air-run blockage - primary blockage |
2009 and newer (BMU) | 12.0 | X | X | X | X |
| Seeding tools with air-run blockage - air-run blockage | 2009 and newer (BMU) | 12.0 | X | X | X | X |
| Member Module | 5.0 | X | X | X | X | |
| 1990 Central Commodity System (CCS™) |
2009 and newer (BMU) | 12.0 | X | X | X | X |
| N500C Series | Seeding apps | 10.1.495-31 | X | --- | X | --- |
| SMCA or SMC | 2.0 | X | --- | X | --- | |
| SMCB or BMU | 2.0 | X | --- | X | --- | |
| EPG | 2.0 | X | --- | X | --- | |
*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.
John Deere Tillage
| John Deere Tillage | Control unit name | Software version (or newer) | CommandCenter | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | |||
| AccuDepth™ cultivator | Implement Depth Control (IDC) | 11 | X | X | X | X |
| 2730 with TruSet |
Tillage Controller 1 (TC1) | 2.66K | X | X | X | X |
| 2230 with TruSet | Tillage Controller 1 (TC1) | 2.75K | X | X | X | X |
| 2330 with TruSet | Tillage Controller 1 (TC1) | 3.35K | X | X | X | X |
| 2620/2630 with TruSet | Tillage Controller 1 (TC1) | 2.95K |
X | X | X | X |
| 2720 with TruSet | Tillage Controller 1 (TC1) | 2.24K | X | X | X | X |
| 2660VT with TruSet | Tillage Controller 1 (TC1) | 2.03K | X | X | X | X |
| 2430 with TruSet | Tillage Controller 1 (TC1) | 2.14K | X | X | X | X |
| 2510H with TruSet | Tillage Controller 1 (TC1) | 2.85K | X | X | X | X |
*NOTE: For implements requiring ground speed input (radar), utilizing a 4240 Universal Display may require an additional 4240 Radar speed kit.
John Deere Round Balers
| John Deere Round Balers | Control unit name | Software version (or newer) | CommandCenter | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | |||
| 0 Series | Baler Automation | 10.07 | X | X | X | X |
| 9 Series Premium |
Baler Automation | 7.16 | X | X | X | X |
| V451R/V461R | Baler Automation | 11.5 | X | X | X | X |
John Deere Large Square Balers
| John Deere Large Square Balers Including Harvest Tec applicator and PhiBer accumulator |
Control unit name | Software version (or newer) | CommandCenter | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | |||
| 0 Series | Gen 4 VT | 3.04 | X | X | X | X |
| 1 Series |
Gen 4 VT | 5.07 | X | X | X | X |
Precision Ag Technology software compatibility
| John Deere control units | Control unit name | Software version (or newer) | CommandCenter display | Universal Display | ||
| 4600 v2 | 4200 | 4640 | 4240 | |||
| *StarFire 6000 Receiver | --- | 4.10J | X | X | X | X |
| StarFire 3000 Receiver | --- | 2.32H | X | X | X | X |
| *Modular Telematics Gateways (MTG) - 3G | --- | 21.03 | X | X | X | X |
| *MTG - 4G | --- | 25.01.746 | X | X | X | X |
| GreenStar Rate Controller | --- | 3.70K | X | X | X | X |
| GreenStar Rate Controller Dry | --- | 2.11A | X | X | X | X |
| *John Deere Rate Controller 2000 | --- | 1.13A | X | X | X | X |
| *AutoTrac Universal 200 | --- | 2.30A | --- | --- | X | X |
| *AutoTrac Universal 300 | --- | 3.22O | --- | --- | X | X |
| AutoTrac Controller 250 | --- | 11933B | --- | --- | X | X |
| *AutoTrac Controller - Deere | --- | 1.11B | --- | --- | X | X |
| AutoTrac Controller - Raven | --- | 10.13.909-158 |
--- | --- | X | X |
| AutoTrac Controller - Reichhardt® | --- | SW 1.3 | --- | --- | X | X |
| AutoTrac RowSense™ | RG3 | AKK15783F | X | --- | X | --- |
| AutoTrac Vision | VGC | 4.01L | X | --- | X | --- |
| AutoTrac Turn Automation | --- | 19-2 | X | --- | X | --- |
| AutoTrac Implement Guidance | --- | 19-2 | X | --- | X | --- |
| Active Implement Guidance (VT) | Application 1100 | 2.71 T | X | X* | X | X* |
| iGrade™ | Application 1100 | 2.71 T | X | X | X | X |
| Distance Trip | Application 1100 | 2.71 T | X* | X | X | X |
| Gen 4 Extended Monitor | X | --- | X | --- | ||
| Wireless Data Server | Wireless Data Server | 1.541.2 (Planting) |
X | --- | X | --- |
| Mobile Data Transfer | MyTransfer™ app | 3.8.6 (iOS®) |
X | X | X | X |
| Connect Mobile app | Connect Mobile app | 8.0.1 or newer | X | --- | X | --- |
| Connect Mobile server | Connect Mobile server | 2.3.87-1 | X | --- | --- | --- |
| Mobile Weather | Application 1120 | 1.51 V | X | X* | X | X* |
| Manure Constituent Sensing | Manure Controller | 19.06 | X | --- | X | --- |
*NOTE: See additional information below.
StarFire Receivers
StarFire Receivers can be updated in the following ways:
- Receiver USB port (available only for StarFire 6000 Receivers)
- Generation 4 display USB port
- Remote software updates application (in ISOBUS VT app)
Additionally, StarFire iTC Receivers are no longer supported with software update 2017-1 and newer software. StarFire 6000 Receivers require software version 3.80F or higher when used with AutoTrac Implement Guidance.
John Deere Operations Center
To use RDA on a Generation 4 CommandCenter Display with a GreenStar 3 2630 Display connected in the same machine, GreenStar 3 2630 software version 3.22.1095 (SU2014-1) or higher is required (for 4600 CommandCenter Display and 4640 Universal Display only).
GreenStar Rate Controller and GreenStar Rate Controller Dry
GreenStar Rate Controller Dry is supported with display software update 2017-2 and newer. The 4600 and 4200 CommandCenter Displays and 4640 and 4240 Universal Displays support documentation and section control of up to five GreenStar Rate Controller units.
To update the GreenStar Rate Controller and GreenStar Rate Controller Dry, utilize a Generation 4 Display USB port. John Deere dealers can also utilize Service ADVISOR™. GDC 2.11A was the last software version available through Software Manager. GDC 2.20A has been available since spring 2015 and contains diagnostic language updates. This software can only be obtained through Service ADVISOR.
John Deere Rate Controller 2000
The Generation 4 Displays and John Deere Rate Controller 2000 can support documentation and control up to five operations. ISO controllers such as SeedStar or TruSet can be used alongside a John Deere Rate Controller 2000 that is documenting additional operations. The John Deere Rate Controller 2000 will not control the planter clutches or half-, third-, or quarter-width disconnects on a John Deere planter.
AutoTrac™ Vision
AutoTrac Vision Guidance Camera 19-1 software 4.01L is only compatible with RowGuidance 3 Controller software AKK15783F and GreenStar 3 2630 17-1 software 3.34.1345 or newer and Generation 4 18-1 software 10.10.404-345 or newer.
AutoTrac Universal 200, AutoTrac Universal 300, and AutoTrac Controller
AutoTrac Universal 200, AutoTrac Universal 300, and AutoTrac Controllers are for use with the 4640 Universal Display and 4240 Universal Display. Please see a John Deere dealer for exact model compatibility.
ISOBUS implements
Generation 4 Displays are compatible with one Agricultural Industry Electronics Foundation (AEF) certified ISOBUS implement; AEF-certified ISOBUS implements with Task Controller Section Control (TC-SC) functionality and AEF certification for TC-SC include sprayers, fertilizer spreaders, planters, seeders, manure applicators, etc. For third-party FMIS compatibility, reference the John Deere Operations Center.
A software update performed by an authorized ISOBUS implement dealer may be required to obtain compatible software. ISOBUS implements must be certified through the Agricultural Industry Electronics Foundation (AEF) to be recognized by the Generation 4 CommandCenter display. Visit www.aef-online.org for more information; visit www.aef-isobus-database.org for an active list of compatible implements.
ISOBUS implements with VT4 are now supported by Generation 4 Displays. Generation 4 Displays still support older VT versions (example: VT2 and VT3). If an implement is not loading after updating to Generation 4 software update 2017-2 (or newer on 4600 CommandCenter v2 processors), it is recommended that the implement manufacturer be contacted to get a software version that is either VT3 or VT4.
Extended monitor
When using an extended monitor with equipment visualized in ISOBUS VT Viewer and applying VT run page modules to two run pages shown at the same time, the extended monitor’s VT modules will not update. To mitigate this, only view VT modules on one run page at a time.
Implements without controllers
Implements without controllers can be documented as a stand-alone operation or with a rate controller from John Deere. Additionally, multiple implements without controllers cannot be documented together.
AutoTrac Implement Guidance (passive)
AutoTrac Implement Guidance is compatible with SeedStar 3HP, SeedStar 2 and SeedStar XP.
AutoTrac Implement Guidance is compatible with C850 Tow-Behind Air Carts with software update 18-2.
AutoTrac Implement Guidance is not compatible with the SeedStar 4 HP planters.
AutoTrac Implement Guidance is not compatible on 4240 Universal Displays for shared signal applications.
AutoTrac Turn Automation
To use the AutoTrac Turn Automation application, specific compatibility is required. AutoTrac Turn Automation is compatible with the following machines:
- 8030 Series Tractors
- 9030 Series Tractors (if equipped with PowerShift™ transmission)
- Model year 2012 and newer 6R Tractors (if equipped with Infinitely Variable Transmission [IVT™] and ITEC™ functionality)
- Model year 2011 and newer 7R Tractors (if equipped with CommandQuad™ transmission, e23™ PowerShift transmission, or IVT)
- Model year 2010 and newer 8R/RT Tractors
- Model year 2012 and newer 9R/RT/RX Tractors
NOTE: Integrated tractor IMS must be turned off on 30-Series Tractors to use AutoTrac Turn Automation on the Generation 4. Integrated Tractor iTEC must be turned off on the following tractors to use AutoTrac Turn Automation on the Generation 4:
- Model year 2012-2014 6R
- Model year 2011-2013 7R
- Model year 2010-2013 8R
- Model year 2012-2014 9R
NOTE: If instead an operator chooses to use the machine’s integrated IMS/iTEC functionality, then AutoTrac Turn Automation and iTEC must be turned off in the Generation 4 Universal Display.
AutoTrac Turn Automation is compatible with SeedStar 3HP, SeedStar 2 and SeedStar XP.
AutoTrac Turn Automation is NOT compatible with SeedStar 4HP planters.
Distance Trip documentation
A UCC2 Application Controller 1100 with 19-2 software running on a 4600 CommandCenter v2 server enables documentation of field operations. If a UCC2 replaces a UCC1 Application Controller 1100 on a CommandCenter v1 server, documentation is not available. Refer to Tech Manual Bulletin 137919 to determine server type.
Camera compatibility
Voyager® cameras are supported on Generation 4 Displays. All other camera types are not supported.
Non-John Deere Precision Ag
4600 CommandCenter v2 and the 4640 Universal Display are compatible with the following RS-232 configurations with software update 18-2 and newer:
- GPS receivers with serial port connection
- Will not enable AutoTrac guidance functionality
- Raven RS-232 control units (440, 450, or 660) on tractors configured as implement-based applications
- Generation 4 displays are not compatible with the DN345 Drawn Dry Spreader at this time.
Machine Communication Radio (MCR)
Generation 4 displays are not compatible with MCR.
APEX™ software
- Generation 4 display work data is not compatible with and cannot be viewed in APEX software.
- USB files including pre-assigned APEX tasks and iTEC™ Pro sequences will not import into Generation 4 displays.
NOTE: Gen 4 data is only compatible with the John Deere Operations Center. All Gen 4 activations are machine specific and cannot be transferred to a different machine. If not using WDT, an 8- to 32-GB USB is required to transfer data to and from the Gen 4 Display. Implement settings are display specific and cannot be imported or exported from the Gen 4 Display.
RAM is a trademark of National Products Inc. Hagie is a trademark of Hagie Manufacturing Company, LLC and similar to John Deere branded equipment, John Deere will support Hagie equipment. Reichhardt is a trademark of Reichhardt GmbH Steuerungstechnik. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc. Android is a trademark of Google LLC. Voyager is a trademark of ASA Electronics, LLC.
