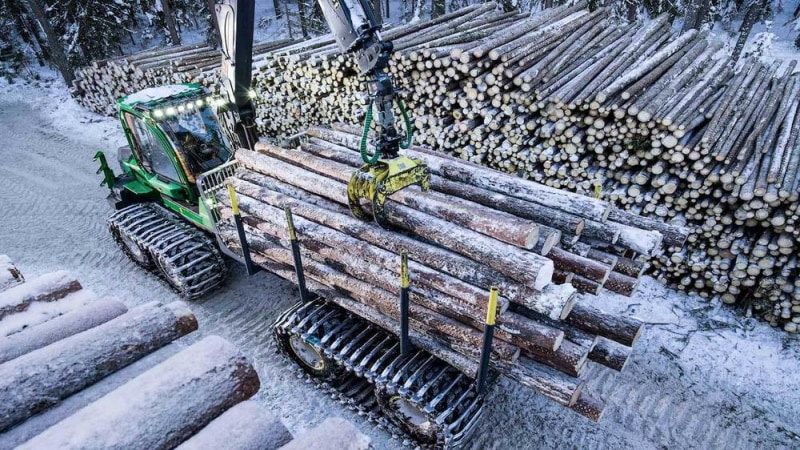

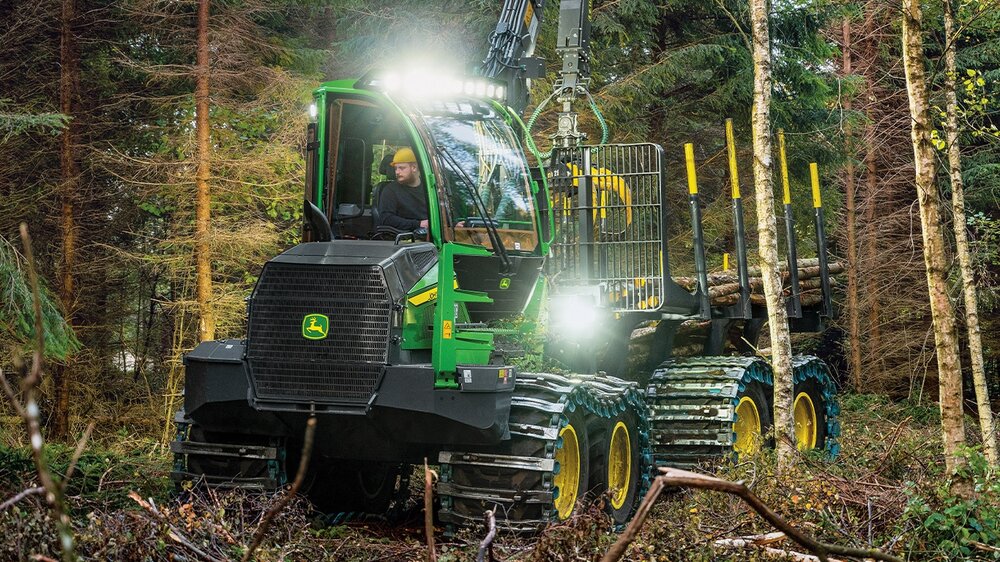

1010G
John Deere Construction | Forwarders
- Net Power: 131 kW (178 hp) at 1,900 rpm
- Boom Reach: 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
- Tractive Force: 150 kN (33,721 lbf) with 24.5 tires/ 160 kN (35,969 lbf.) with 26.5 tires.
- Load Rating: 11 000 kg (24,251 lb.)
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 1010G Forwarder |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech Plus 4045 | |||
| Displacement, ltr (Inches³) | 4.5 (274.6) | |||
| Engine Output, kW (hp) | 118 (158) | |||
| Engine Torque, Nm (lbf / ft) | 650 (479.4) | |||
| Drive Configuration | 8 x 8 | |||
| Transmission | Hydrostatic-Mechanical | |||
| Std tire size front | 700 x 26.5 | |||
| Std tire size rear | 700 x 26.5 |
DIMENSIONS
| Base Carrier Length, mm (inches) | 9455 (372) | |||
|---|---|---|---|---|
| Height Over Cab, mm (inches) | 3712 (146.4) | |||
| Transport Height, mm (inches) | 3712 (146.4) | |||
| Width, mm (inches) | 2790 (110.4) | |||
| Wheelbase, mm (inches) | 5200 (205.2) | |||
| Ground Clearance, mm (inches) | 638 (25) | |||
| Width - Fixed Bunk, mm (inches) | 2500 (98.4) | |||
| Horizontal Reach, m (ft/in) | 10 (32 ft 9 in) | |||
| Load Length, mm (inches) | 4500 (160.8) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 150 (39.6) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 150 (39.6) | |||
| Alternator Output, Amp | 150 |
PERFORMANCE
| Lifting Moment - Standard Crane, kNm (lbf / ft) | 102 (75) | |||
|---|---|---|---|---|
| Load Capacity, tonnes (tons (short)) | 11 (24251) | |||
| Travel Speed, kph (mph) | 23 (14.3) | |||
| Tractive Force, kN (lbf) | 160 (35969) | |||
| System Voltage, V | 24 | |||
| Pump Capacity, cm³ (Inches³) | 120 (7.3) |
WEIGHTS
| Operating Weight, kg (lbs) | 16050 (35384) |
|---|
