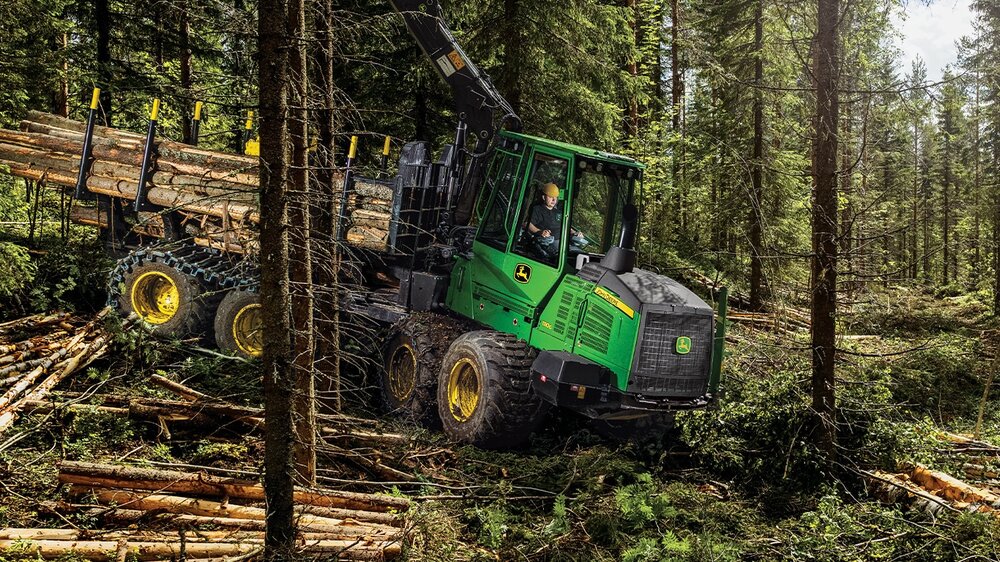

John Deere Construction | ForwardersRequest a Quote
- Boom Reach: 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
- Tractive Force: 160 kN (35,968 lbf.)
- Load Rating: 12 000 kg (26,455 lb.)
- Engine Power: 145 kW (194 hp) at 1,600 – 1,900 rpm
Rotating, self-leveling cab turns 290 deg. for an all-around view of boom movements and the jobsite, for safe, efficient log loading.
- Exclusive TimberLink automatic monitoring system keeps an eye on operating costs while tracking machine performance and efficiency.
- Work-cycle information, such as loading and driving times can be used to fine-tune settings and improve operator technique.
TimberMatic F-12 control system delivers fine-tuned hydraulics, for effortlessly smooth forwarder functions.
Available with a 40-cm-shorter wheelbase, for better agility in thinnings, without compromising stability or load size.
- Optional Intelligent Boom Control eases boom operations, making them more precise and productive.
- Joysticks are configurable to user preference, so operators can run IBC using their preferred control patter.
Specs & Compare
|Specs & Compare|
|Select up to 4 models to compare specifications||
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech Plus 6068|
|Displacement, ltr (Inches³)||6.8 (414.9)|
|Engine Output, kW (hp)||145 (194)|
|Engine Torque, Nm (lbf / ft)||865 (638)|
|Drive Configuration||8 x 8|
|Std tire size front||26.5 - 20|
|Std tire size rear||26.5 - 20|
|Base Carrier Length, mm (inches)||9820 (386.4)|
|Transport Height, mm (inches)||3870 (152.4)|
|Width, mm (inches)||2700 (106.8)|
|Wheelbase, mm (inches)||4900 (193.2)|
|Ground Clearance, mm (inches)||660 (26)|
|Width - Fixed Bunk, mm (inches)||2700 (106.8)|
|Horizontal Reach, m (ft/in)||7.2 (23 ft 7 in)|
|Load Length, mm (inches)||4500 (177.6)|
|Fuel Tank, ltr (gallons (US))||167 (44)|
|Hydraulic Tank, ltr (gallons (US))||161 (43)|
|Alternator Output, Amp||150|
|Lifting Moment - Standard Crane, kNm (lbf / ft)||102 (75)|
|Load Capacity, tonnes (tons (short))||12 (13.228)|
|Travel Speed, kph (mph)||23 (14.3)|
|Tractive Force, kN (lbf)||160 (35968)|
|System Voltage, V||24|
|Pump Capacity, cm³ (Inches³)||140 (9)|
|Operating Weight, kg (lbs)||17130 (37765)|
