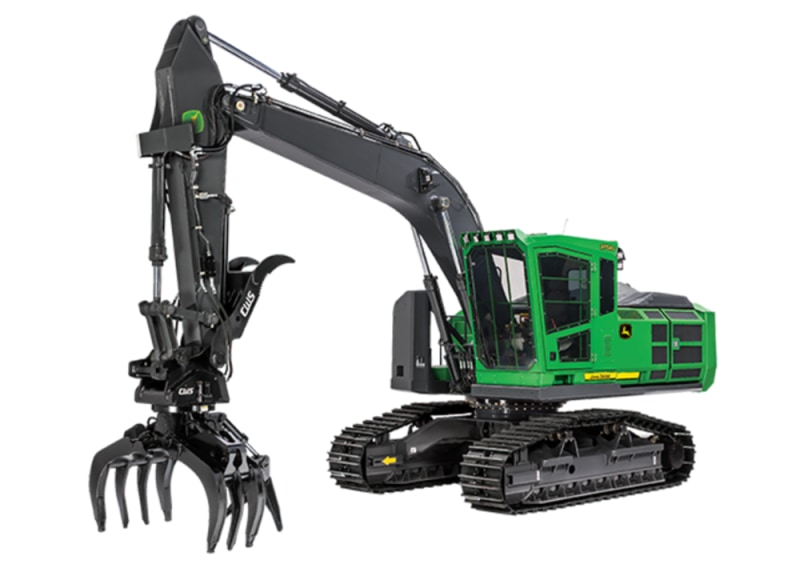

John Deere Construction | Swing Machines
- Net Power: 202 kW (271 hp) at 1900 rpm
- Max. Hydraulic Flow: 304 L/m (80.3 gpm) x 2
- Swing Torque: 120 000 Nm (88,507 lb.-ft.)
- Drawbar Pull: 36 102 kgf (79,590 lbf)
Expand All Collapse All
Undercarriage and mainframe are designed to deliver up to 67-percent longer life. More robust boom-foot base with larger pins strengthens the boom connection. Bushings have been added to the boom tower and boom tip to improve joint integrity and simplify repair.
- Spacious cab boasts an additional three inches of legroom.
- Ergonomically correct short-throw pilot levers provide smooth, precise fingertip control with less movement or effort.
- LED lights are standard for when you need to extend your workday beyond daylight. 14-light LED package plus service and access lights provide outstanding all-around illumination.
Three productivity modes allow you to adjust the machine to the application.
- High productivity delivers more power and faster hydraulic response.
- Power delivers a balance of power, speed, and fuel economy for normal operation.
- Economy limits top speed and helps save fuel.
- Larger service bays make it easier to access components, helping ensure daily checks and preventative maintenance get done effortlessly and on schedule.
- LED lighting illuminates service compartments so you won’t have to fumble around for a flashlight before dawn or after dark.
Specs & Compare
|Specs & Compare|
|Select up to 4 models to compare specifications||
|Reference Stick size, mm (inches)||3200 (126)|
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech PSS 9.0L|
|Displacement, ltr (Inches³)||9 (549)|
|Engine Output, kW (hp)||202 (271)|
|Engine Output - Net, kW (hp)||202 (271)|
|Carrier Rollers - Each Side||2|
|Track Rollers - Each Side||8|
|Track Shoe Width, mm (inches)||700 (28)|
|Overall Length, mm (ft/in)||11150 (36 ft 7 in)|
|Transport Height, mm (ft/in)||3810 (12 ft 6 in)|
|Overall Width, mm (ft/in)||3630 (11 ft 11 in)|
|Overall Track Length, mm (ft/in)||4950 (16 ft 3 in)|
|Track Length On Ground, mm (ft/in)||4040 (13 ft 3 in)|
|Tailswing Radius, mm (ft/in)||3610 (11 ft 10 in)|
|Ground Clearance, mm (ft/in)||740 (2 ft 5 in)|
|Width Over Tracks, mm (ft/in)||3630 (11 ft 11 in)|
|Track gauge, mm (ft/in)||2920 (9 ft 7 in)|
|Dig Depth SAE, mm (ft/in)||7140 (23 ft 5 in)|
|Horizontal Reach, m (ft/in)||11.05 (36 ft 3 in)|
|Dump Height, mm (ft/in)||7620 (25 ft )|
|Fuel Tank, ltr (gallons (US))||1080 (285)|
|Hydraulic Tank, ltr (gallons (US))||195 (52)|
|Ground Bearing Pressure, kPa (PSI)||67.6 (9.8)|
|Slew Torque, kNm (lbf / ft)||120 (88507)|
|Travel Speed, kph (mph)||4.5 (2.8)|
|Lift capacity at max reach, kg (lbs)||8740 (19260)|
|Pump Type||Variable Axial Piston|
|Pump Flow, lt/min (gallons (US) / min)||304 (80.3) x 2|
|Relief Pressure, kPa (PSI)||34300 (4975)|
|Boost Pressure, kPa (PSI)||38000 (5511)|
|Operating Weight, kg (lbs)||43143 (95114)|
