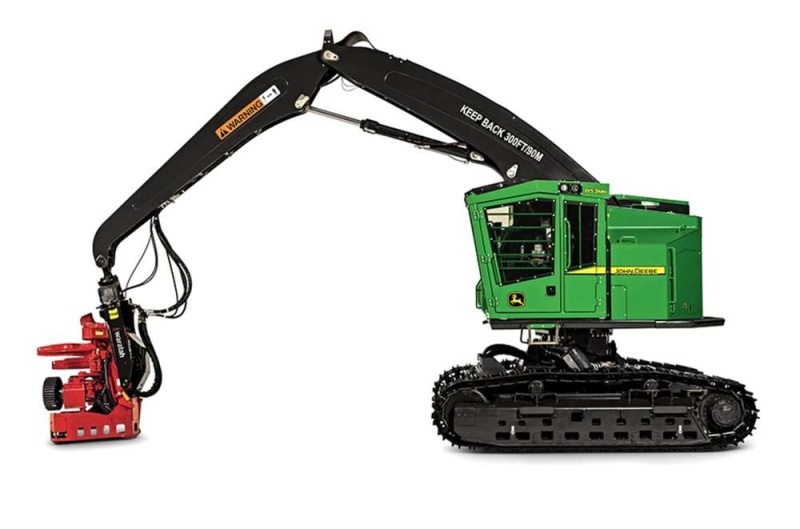

John Deere Construction | Tracked Harvesters
- Net Power: 224 kW (300 hp) at 1,900 rpm
- Max. Boom Reach: 9.91 m (32 ft. 6 in.)
- Tractive Effort: 322 kN (72,389 lbf)
Dedicated engine power
When equipped with the Dedicated Travel System feature, a 330-hp engine option can be selected to further improve the performance and efficiency of the Travel System and all other machine functions.
Optional Intelligent Boom Control (IBC)
- With IBC, operators no longer need to control each independent boom function separately. Just control the attachment position, and IBC automatically guides the boom and cylinders accordingly. IBC also automatically controls swing speed based on the overall position of the attachment.
- IBC is easily configurable to user preference, so operators can adapt their motions to the application. Individual user settings can be saved in up to eight separate profiles, to accommodate multiple skill and experience levels.
Generous tractive effort enables reliable negotiation of difficult or steep terrain, deep snow, and swamps. Long and wide undercarriage maximizes stability in all terrain conditions.
Floor-to-ceiling front window, large side windows, skylight, and optional floor window significantly expand the view of the harvesting area and the work at hand.
Take the guesswork out of planning, implementing, and monitoring your logging operation. The tools of our production-planning and -tracking system expand on the core technology features that come standard in every John Deere Forestry machine to unleash a powerful new array of possibilities:
- TimberMatic™ Maps is an innovative onboard software solution that helps you reimagine your jobsites. Real-time production views, optimized routes, and shared wireless connections between machines make it easier than ever before to take your forestry operation to the next level.
- TimberManager™ is a web-based solution for PCs, tablets, and mobile phones that allows you to follow jobsite progress. Combined with TimberMatic Maps, this software provides complete visibility of your operation — from land harvested to specific machines — so you can streamline communication, analyze tasks, and increase productivity.
- Ergonomically designed controls and seat with dual-density seat pan and contour plus updated armrest and suspension boost overall operator comfort.
- Options such as heated-ventilated seat (HVS) and updated premium Bluetooth® radio with XM Satellite Radio ready from the factory take comfort to the next level.
John Deere Connected Support™
Your John Deere Forestry machine arrives from the factory equipped with a powerful set of technologies and capabilities already built in:
- JDLink™ connectivity lets you track your equipment, see which machines are working, and know if they’re being utilized properly and at maximum productivity and efficiency.
- Enabled through JDLink, John Deere Connected Support leverages a suite of dealer and factory tools designed to deliver increased uptime and productivity, and lower daily operating costs.
- Remote Diagnostics and Programming Capability within John Deere Connected Support helps your dealer warn you of any issue with your machine — often before you know of the problem yourself — and initiate solutions without charging you for a technician’s visit to your jobsite.
- Our advanced dual approach to Machine Health combines the expertise of the technology specialists at our dealerships with the data specialists at our central Machine Health Monitoring Center (MHMC).
Specs & Compare
|Specs & Compare|
|Select up to 4 models to compare specifications||
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech Plus 6090H|
|Displacement, ltr (Inches³)||9 (549)|
|Rated Speed, rpm||2000|
|Engine Output, kW (hp)||224 (300)|
|Engine Torque, Nm (lbf / ft)||1270 (937)|
|Carrier Rollers - Each Side||2|
|Track Rollers - Each Side||9|
|Track Shoe Width, mm (inches)||610 (24)|
|Height Over Cab, mm (ft/in)||3460 (11 ft 4 in)|
|Width, mm (ft/in)||3300 (10 ft 10 in)|
|Overall Track Length, mm (ft/in)||4900 (16 ft 1 in)|
|Track Length On Ground, mm (ft/in)||3830 (12 ft 7 in)|
|Tailswing Radius, mm (ft/in)||1940 (6 ft 4 in)|
|Ground Clearance, mm (ft/in)||779 (2 ft 7 in)|
|Superstructure Width, mm (ft/in)||3150 (10 ft 4 in)|
|Slewing Angle, Degrees||360|
|Fuel Tank, ltr (gallons (US))||870 (228.9)|
|Number of Alternators||1|
|Alternator Output, Amp||100|
|Slew Speed, rpm||6.8|
|Travel Speed, kph (mph)||4.2 (2.6)|
|Reference Harvesting Head||Waratah HTH622B|
|Felling Diameter, mm (inches)||750 (29.5)|
|Delimbing Diameter, mm (inches)||640 (25.2)|
|Delimbing Feed Rate, m/sec (ft/sec)||5.7 (18.7)|
|Cutting Radius - Maximum, mm (ft/in)||8840 (29 ft )|
|Cutting Radius - Minimum, mm (ft/in)||2710 (8 ft 11 in)|
|Cutting Swath Horizontal, mm (ft/in)||6130 (20 ft 1 in)|
|System Voltage, V||24|
|Main Pump||Variable Displacement Axial Piston|
|Pump Flow, lt/min (gallons (US) / min)||532 (141)|
|Operating Weight, kg (lbs)||33070 (72920)|
|Weight - With Reference Head, kg (lbs)||33070 (72920)|
|Weight - Without Reference Head, kg (lbs)||30880 (68090)|
