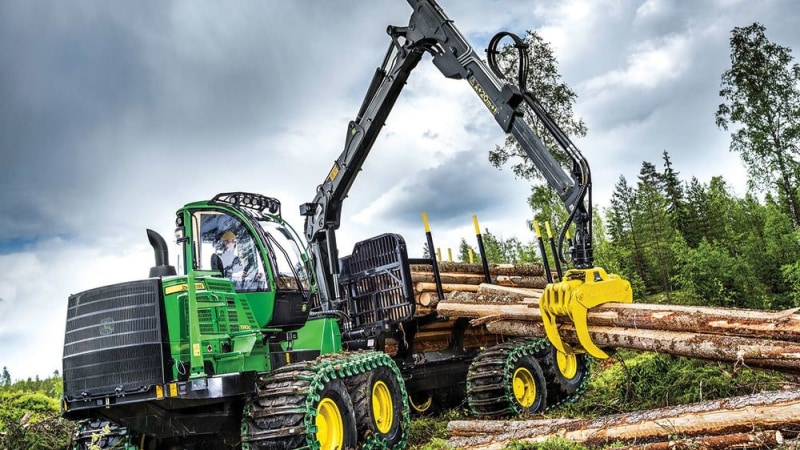

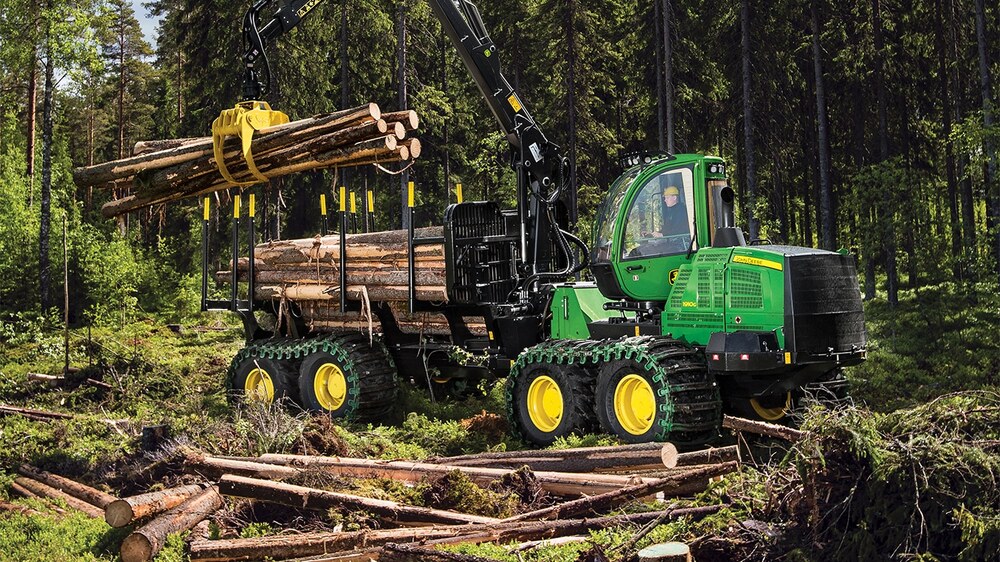

1910G
John Deere Construction | Forwarders
- Net Power: 200 kW (268 hp) at 1,600–1,900 rpm
- Boom Reach: 8.5 m (27.9 ft.)
- Tractive Force: 230 kN (51,704 lbf)
- Load Rating: 19 000 kg (41,888 lb.)
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications | John Deere 1910G Forwarder |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech Plus 6090 | |||
| Displacement, ltr (Inches³) | 9 (549.2) | |||
| Engine Output, kW (hp) | 200 (268.2) | |||
| Engine Torque, Nm (lbf / ft) | 1315 (969.8) | |||
| Drive Configuration | 8 x 8 | |||
| Transmission | Hydrostatic-Mechanical | |||
| Std tire size front | 26.5 - 20 | |||
| Std tire size rear | 26.5 - 20 |
DIMENSIONS
| Base Carrier Length, mm (inches) | 11470 (451.2) | |||
|---|---|---|---|---|
| Transport Height, mm (inches) | 3900 (153.6) | |||
| Width, mm (inches) | 3090 (122.4) | |||
| Wheelbase, mm (inches) | 6250 (246) | |||
| Ground Clearance, mm (inches) | 800 (32) | |||
| Width - Fixed Bunk, mm (inches) | 2953 (115.2) | |||
| Horizontal Reach, m (ft/in) | 8.5 (27 ft 10 in) | |||
| Load Length, mm (inches) | 5635 (222) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 184 (49) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 185 (49) | |||
| Alternator Output, Amp | 150 |
PERFORMANCE
| Lifting Moment - Standard Crane, kNm (lbf / ft) | 151 (111372) | |||
|---|---|---|---|---|
| Load Capacity, tonnes (tons (short)) | 19 (20.944) | |||
| Travel Speed, kph (mph) | 21 (13) | |||
| Tractive Force, kN (lbf) | 230 (169639) | |||
| System Voltage, V | 24 | |||
| Pump Capacity, cm³ (Inches³) | 180 (11) |
